Our Products
HSAW MS pipes from 20″ to 130″ with five anti-corrosion coating systems — engineered for water, irrigation, oil & gas and infrastructure.
HSAW MS pipes & five coating systems.
From bare HSAW pipes to project-specific internal and external coatings, MTL Pipes manufactures a complete portfolio for water, irrigation, oil & gas and infrastructure applications.

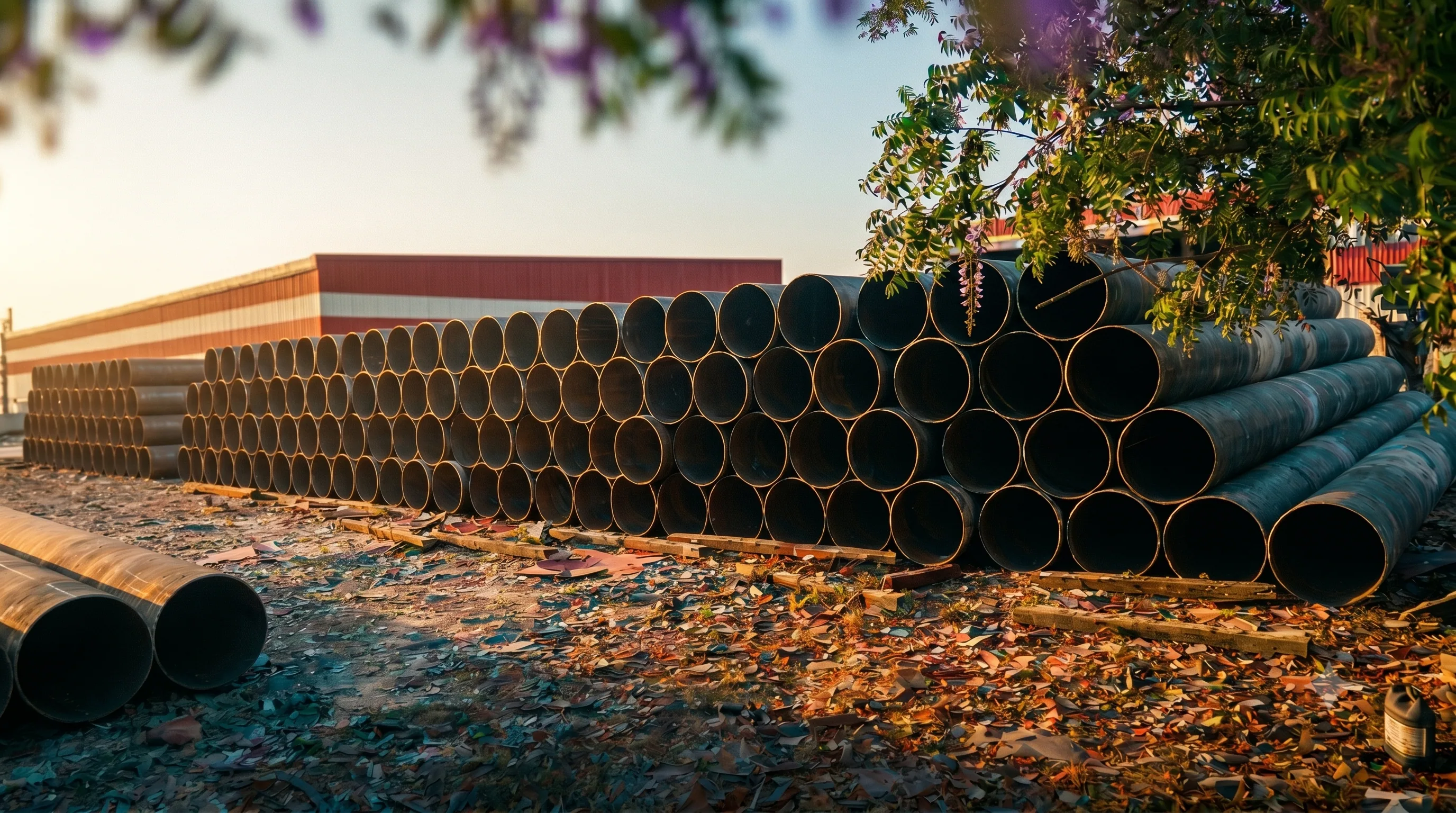

HSAW Bare MS Pipes
Helical / Spiral Submerged Arc Welded mild-steel pipes manufactured from prime HR coil on one fully automated production line. BIS certified product — accepted by government agencies and leading EPC contractors.
- Outside diameter: 20″ – 130″ (500 mm – 3,250 mm)
- Wall thickness: 5 mm – 16 mm
- Material grade: MS per IS 3589 & IS 5504
- Standard: BIS certified to IS 3589 & IS 5504
- Annual capacity: 1,00,000 MT on one automated line
- 100% hydro-tested with documented test reports

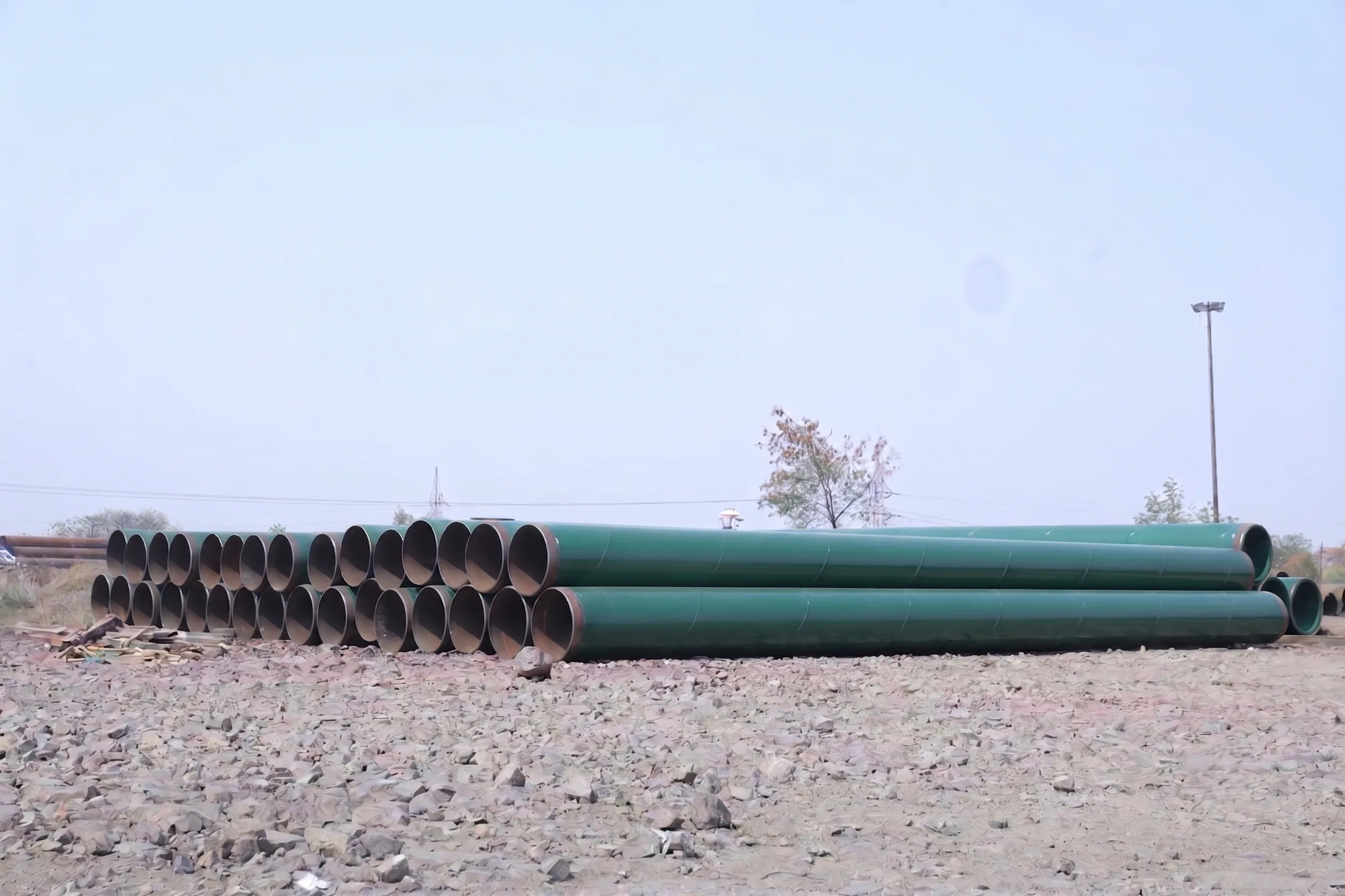

FBE Coated Pipes
Fusion-Bonded Epoxy — a high-performance thermosetting epoxy applied to a shot-blasted pipe surface for durable corrosion protection of buried water mains and pipelines.
- External coating with optional internal epoxy lining
- Coating thickness: 100 – 1,000 microns
- Surface preparation: shot blasted to near-white metal
- Standards: API RP 5L9 / CSA Z245.20
- Application: water mains, buried pipelines, infrastructure

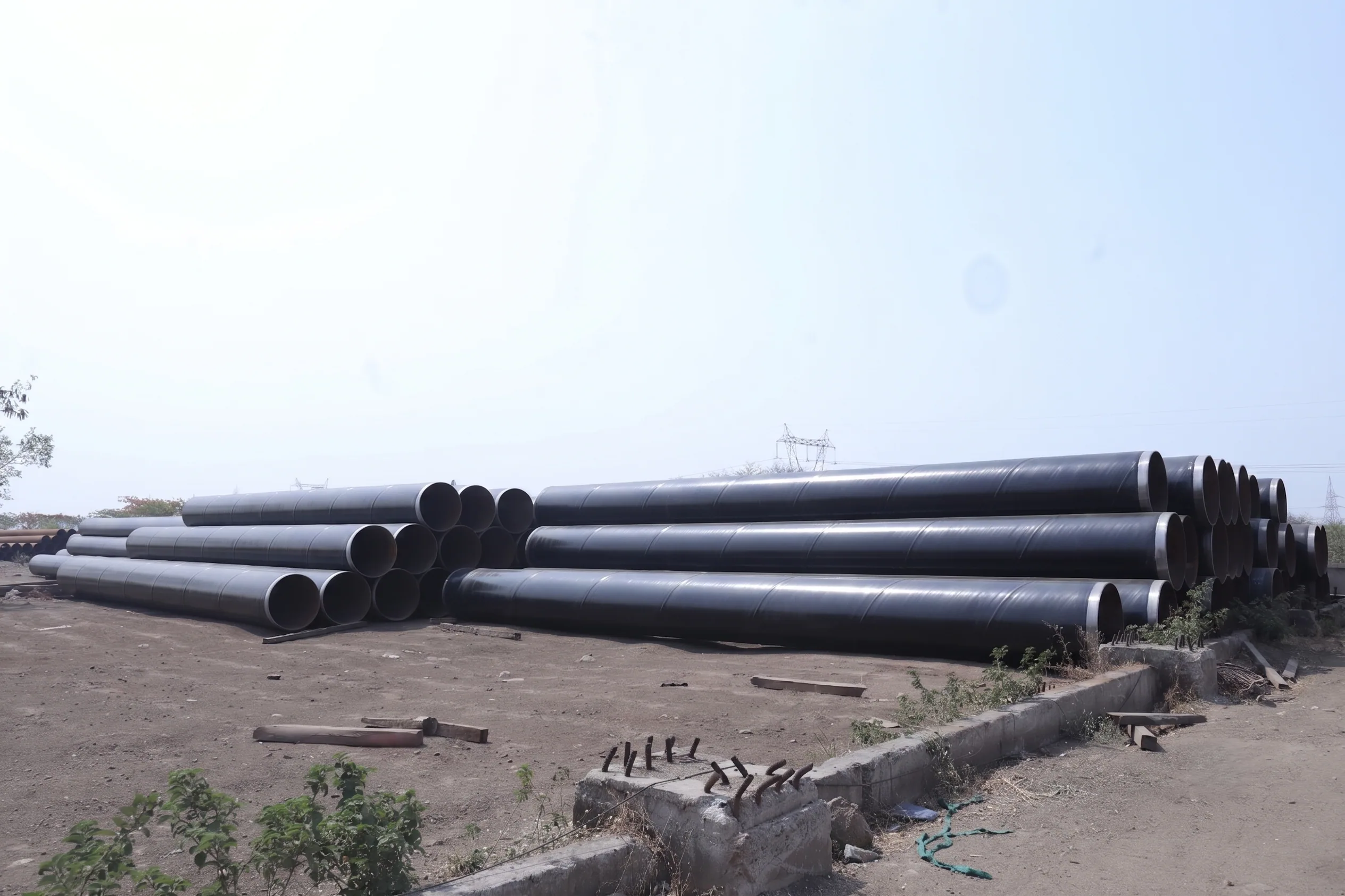

PE Coated Pipes
External polyethylene coating providing excellent dielectric properties and long-term corrosion resistance — the proven choice for buried water and gas pipelines.
- Diameter range: 20″ – 130″ OD
- Three-layer polyethylene (3LPE) configuration
- Excellent dielectric properties & impact resistance
- Standards: DIN 30670 / IS 15389
- Application: buried water mains, gas pipelines

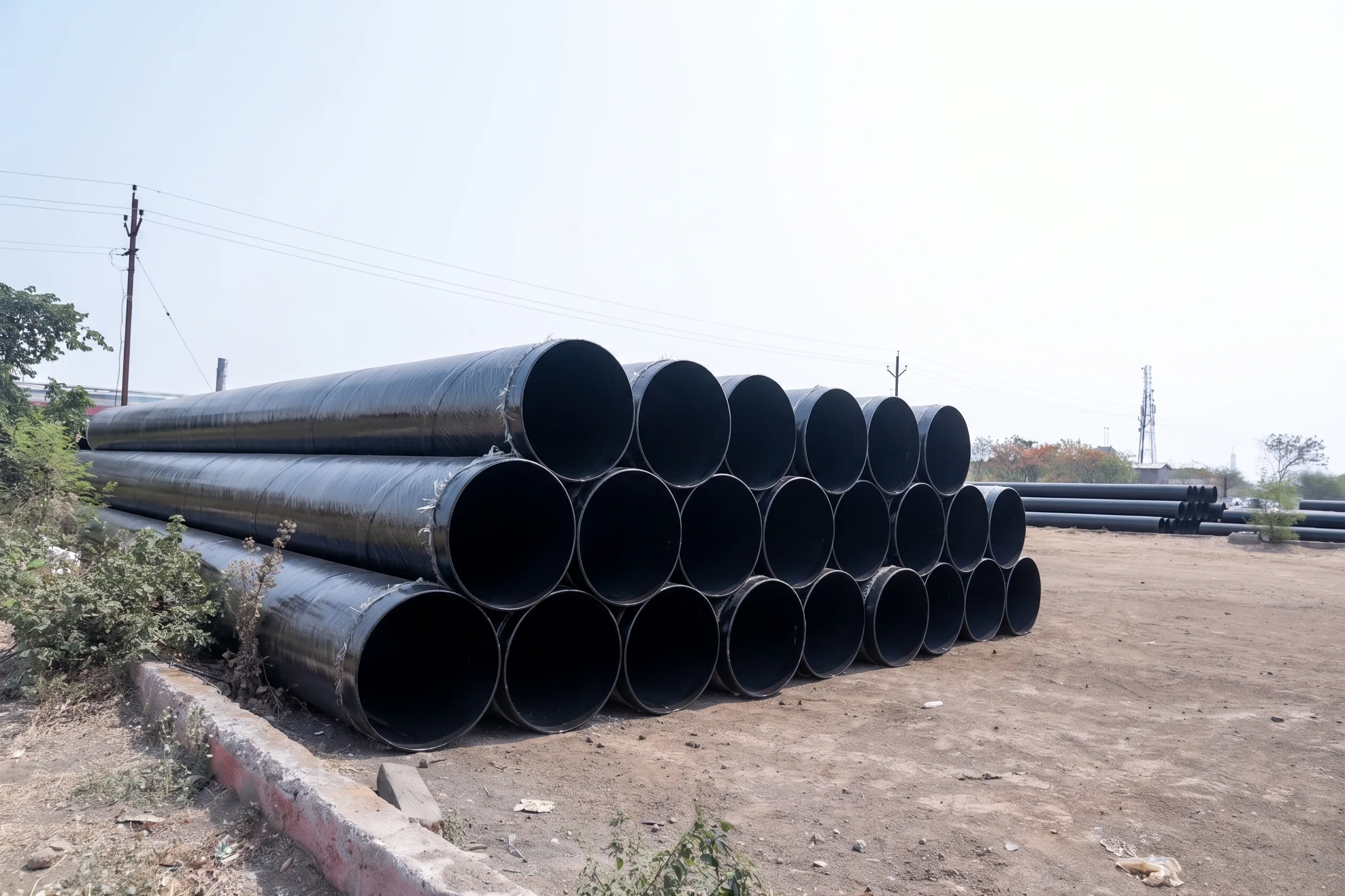

CTE Coated Pipes
Coal-Tar Enamel coating reinforced with glass-fibre wrapping — a time-tested protection system for water mains, irrigation schemes and river crossings.
- External CTE coating with glass-fibre wrap reinforcement
- Excellent long-term moisture resistance
- Decades of proven performance in Indian conditions
- Standards: IS 10221
- Application: water mains, irrigation, river crossings

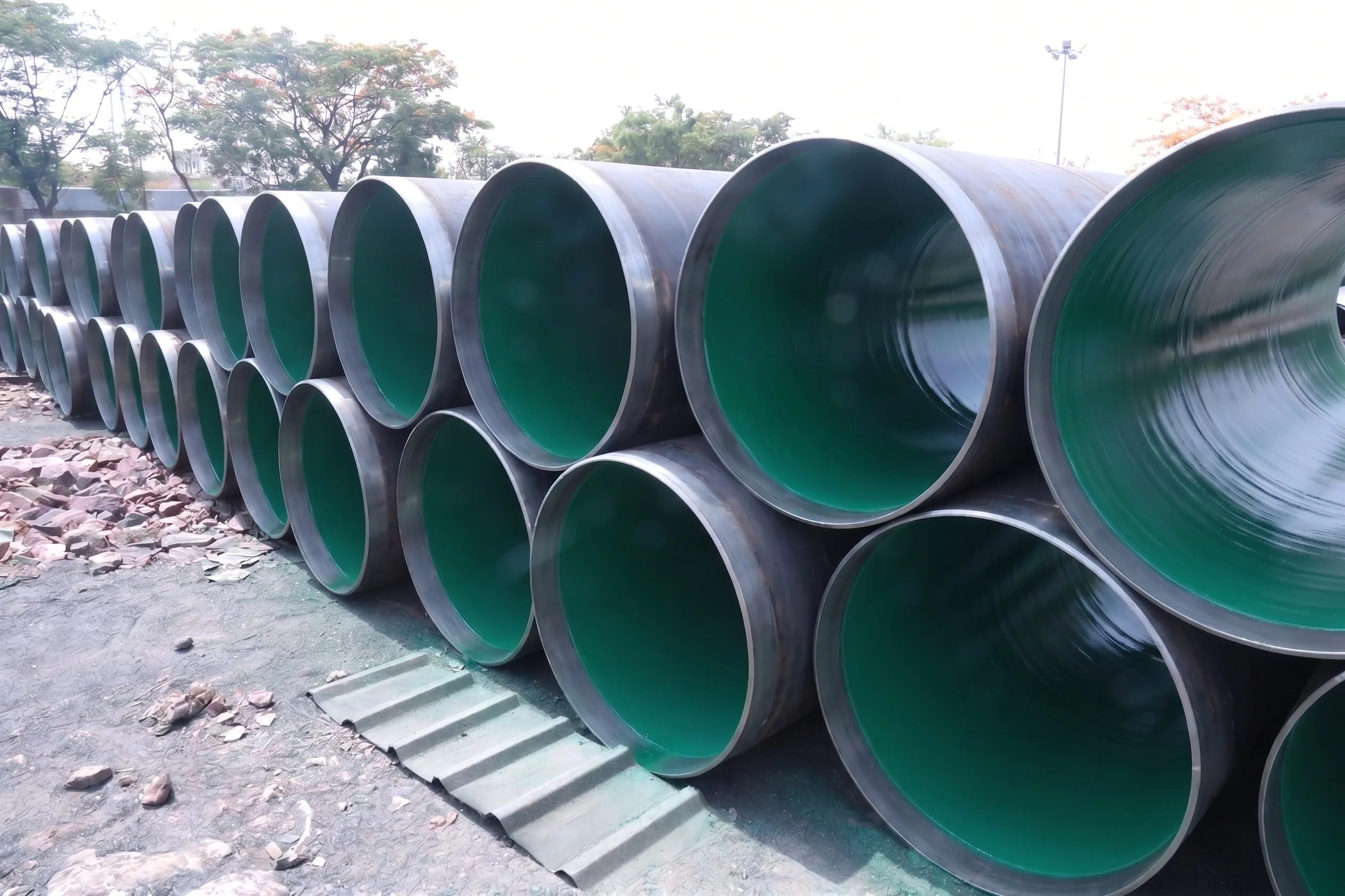

Liquid Epoxy Lined Pipes
Internal lining applied by rotary spray for a smooth, food-safe bore — improving hydraulic flow and preventing internal corrosion in drinking water transmission.
- Internal lining by rotary spray application
- Smooth bore — improved hydraulic efficiency
- Potable-water safe formulations available
- Coating thickness: 100 – 1,000 microns
- Application: drinking water supply, treated water
CWC Coated Pipes
Concrete Weight Coating — reinforced concrete applied over an anti-corrosion layer to give buried and submerged pipelines the negative buoyancy required for stable installation.
- Reinforced concrete coating over corrosion barrier
- Provides negative buoyancy for submerged pipelines
- Resists external mechanical impact & abrasion
- Application: offshore, river crossings, submerged use
- Coating thickness engineered to project hydrodynamics
Standard size range.
Sizes are indicative. Custom diameters, wall thicknesses, lengths and coating combinations produced on project order.
| Outside Diameter | Nominal Bore | Wall Thickness | Length | Standard |
|---|---|---|---|---|
| 508.0 mm (20″) | 500 NB | 5.0 – 6.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 609.6 mm (24″) | 600 NB | 5.0 – 12.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 762.0 mm (30″) | 750 NB | 5.0 – 14.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 914.4 mm (36″) | 900 NB | 6.0 – 14.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 1066.8 mm (42″) | 1000 NB | 6.0 – 14.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 1219.2 mm (48″) | 1200 NB | 8.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 1422.4 mm (56″) | 1400 NB | 8.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 1524.0 mm (60″) | 1500 NB | 8.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 1828.8 mm (72″) | 1800 NB | 10.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 2032.0 mm (80″) | 2000 NB | 10.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 2540.0 mm (100″) | 2500 NB | 12.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 2997.0 mm (118″) | 3000 NB | 12.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
| 3251.2 mm (128″) | 3250 NB | 12.0 – 16.0 mm | up to 12 m | IS 3589 / IS 5504 |
3 million m² coating per year.
Five specialised systems — applied in-house on every project — delivered to thicknesses from 100 to 1,000 microns.
Fusion-Bonded Epoxy
Water mains & buried pipelines
Three-Layer Polyethylene
Buried water & gas pipelines
Coal-Tar Enamel
Water, irrigation & river crossings
Epoxy
Internal Liquid Epoxy
Drinking-water transmission
Concrete Weight Coating
Offshore & submerged crossings
Manufactured to the standard your project specifies.
From Indian Standards to API and AWWA — our QA framework is built to meet the most stringent national and international codes.
MS welded pipes for water & sewage applications.
Spiral welded steel pipes for water, sewage & structural use.
Steel water pipe 6 in. and larger for water transmission.
External 3-layer polyethylene coating for buried steel pipelines.
Coating & wrapping practice for underground steel pipelines.
External fusion-bonded epoxy (FBE) coating on line pipe.
Internal cement-mortar lining & liquid-epoxy coatings.
Have a project to specify?
All enquiries acknowledged and responded to within 24 business hours. Share your tender or BOQ — our engineering team is ready.
